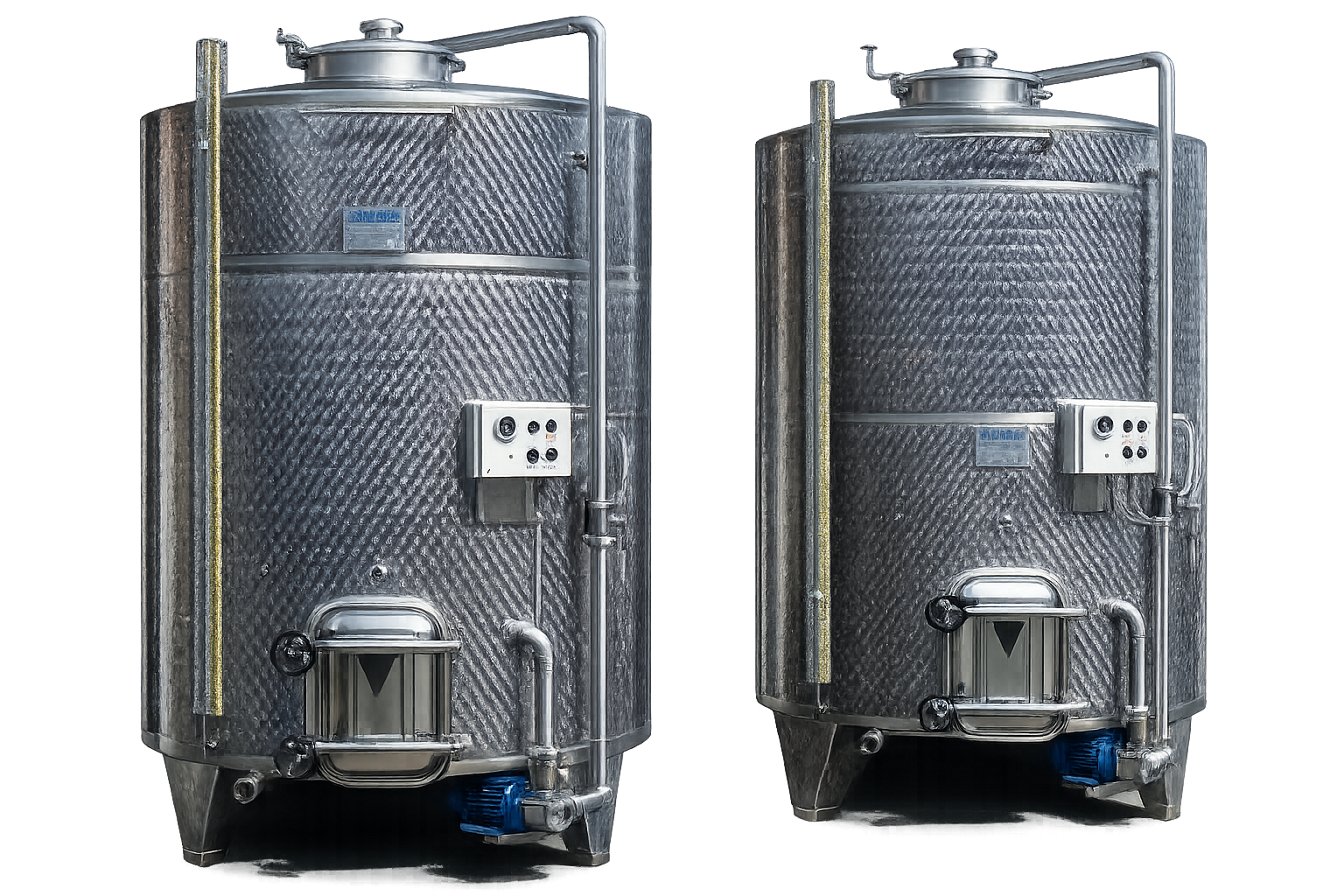

The VIBO B stainless steel tanks equipped with mixing pump and recirculation pipe are modern products manufactured from food-grade AISI 304 BA X5NiCr 18/10 stainless steel, available in various structural configurations and capacities.
Thanks to the mixing pump equipped with an agitator, these tanks are particularly suitable for fermentation processes, allowing controlled mixing of the must and of the material resulting after destemming and crushing operations. The assembly can optionally be equipped with an electrical control panel featuring adjustable sequential timing between working and pause cycles.
These tanks are equipped with a top hatch (lid) used for filling operations and with a lower inspection door available in round, rectangular, or oval shape, facilitating easy access to the interior for cleaning and maintenance operations. They are also supplied with a range of accessories delivered together with the tank upon purchase, as described in the table below:
VIBO B Inclined Flat Bottom Tanks Table
Standard equipment (included):
- Top hatch Ø400 with lever-arm closure
- Double-action air vent valve
- 2 welded stainless steel sleeves for side and bottom outlets
- 2 chrome-plated brass ball valves for discharge
- Tasting valve, stainless steel ladder support, and level indicator
- Adjustable stainless steel feet pads
Optional equipment (additional cost):
- Recirculation pipe equipped with Chinese hat type diffuser
- Remixing pump with agitator
- Electronic control and timing panel
- Stainless steel cross bars welded inside the tank for breaking the pomace cap
- Inspection door (round, oval, or rectangular)
- Manufacturer: Toscana Inox SRL - Italy
