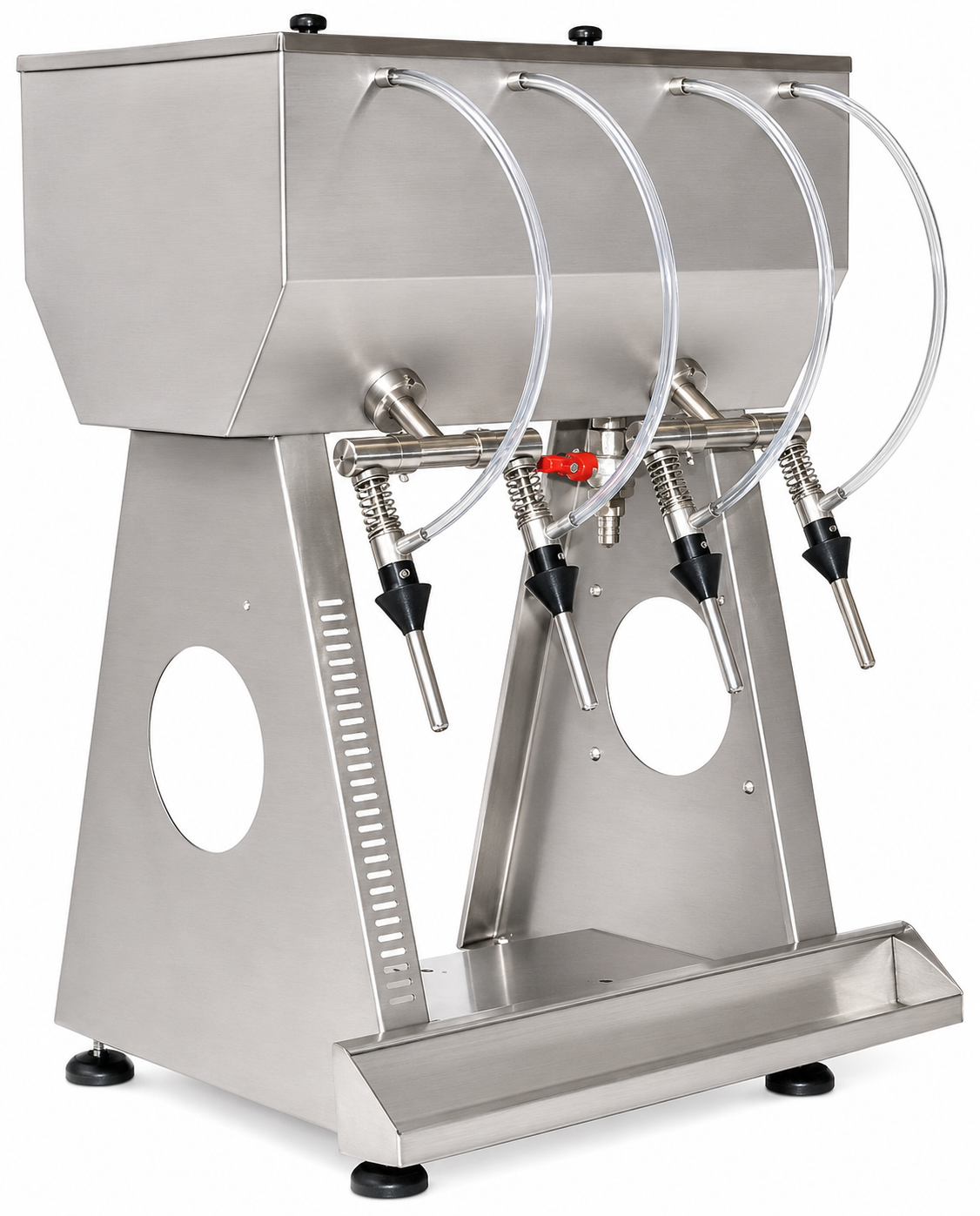

The TIVOLI filling device is manufactured entirely from AISI 304 stainless steel and is available with two, four or six filling spouts, making it suitable for liquids with a density similar to water. It provides fast and professional filling.
Available in the following versions:
- “N” – without float
- “GS” – with ball float
- “GE” – with electric float
- with “E” stainless steel pump, 2800 rpm

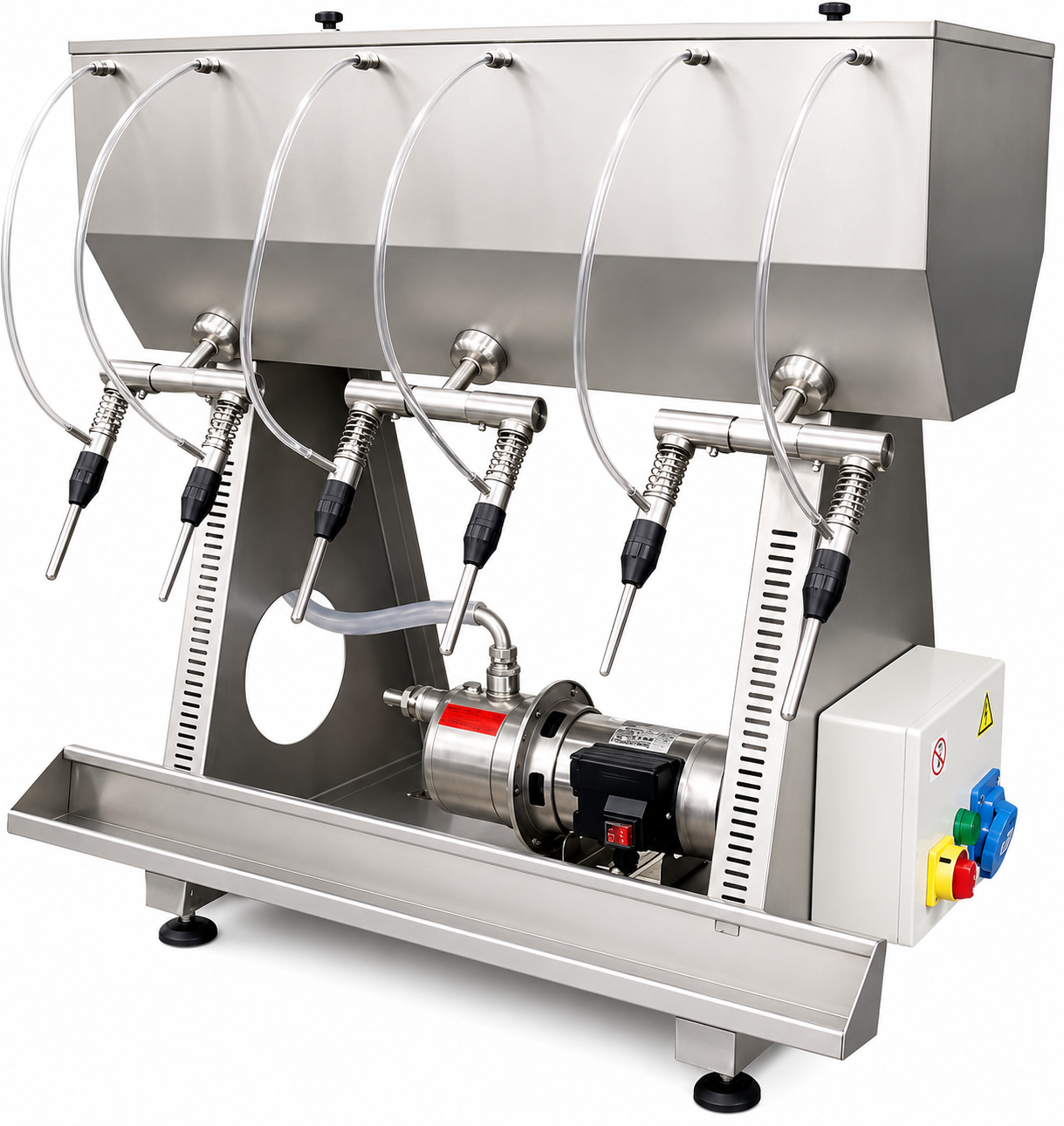

- with “Z25” stainless steel pump, 900 rpm, with flexible impeller
The unit is easy to operate and fills bottles quickly, making it ideal for small wineries and private users.
Once the upper tank is filled, the wine flows by gravity into the bottle without pressure, helping preserve the aroma and characteristics of the product.
Technical specifications
| Model | Tank capacity (liters) | Output (bottles/hour) | Overall dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| TIVOLI 2 | 20 | 200 – 300 | 390 × 400 × 850 | 14 |
| TIVOLI 4 | 55 | 500 – 600 | 600 × 500 × 910 | 23 |
| TIVOLI 6 | 75 | 750 – 900 | 830 × 500 × 910 | 26 |
Manufacturer: Zambelli Enotech SRL
