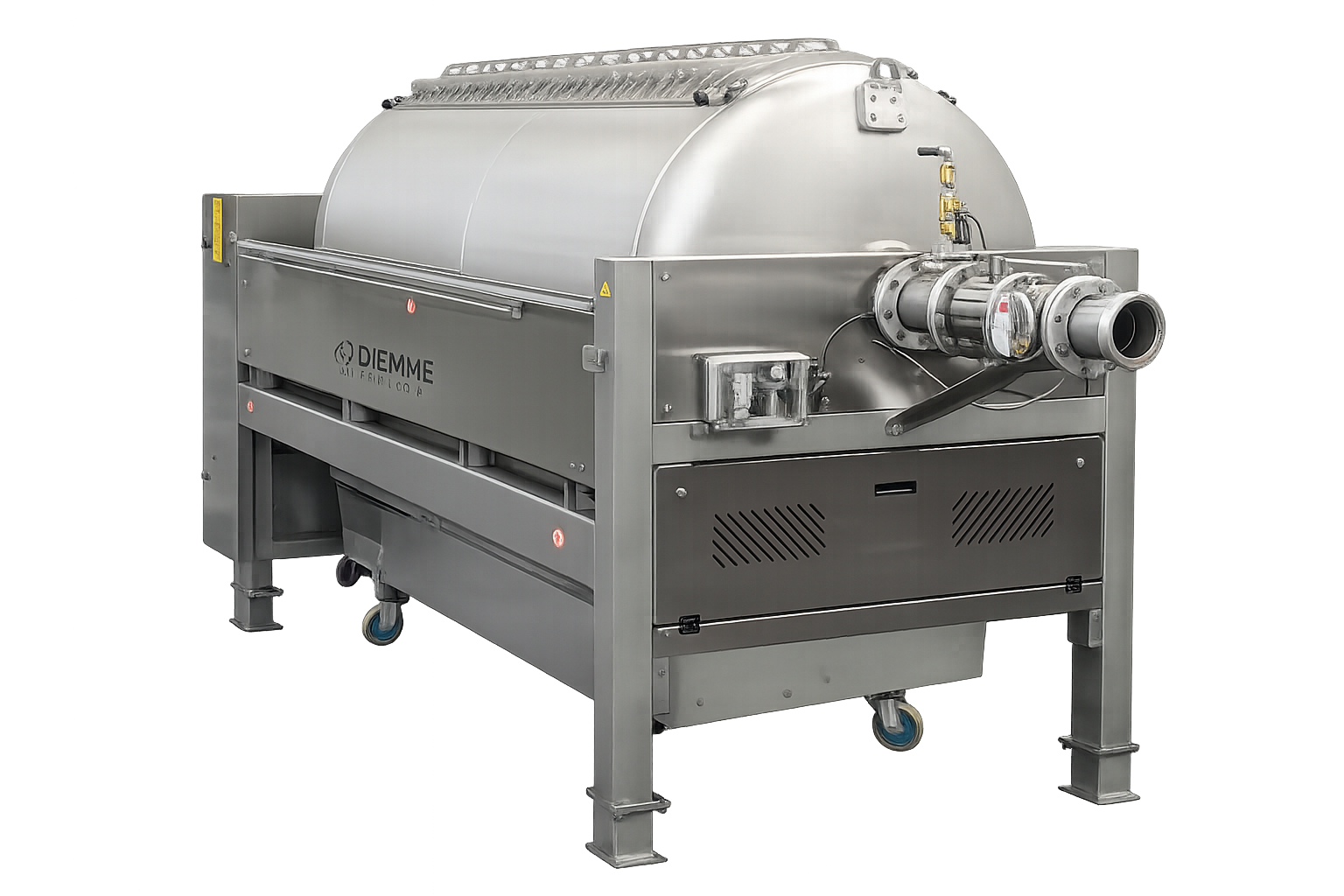

Horizontal pneumatic membrane press certified according to current European Directives, featuring a closed AISI 304 stainless steel tank. High drainage efficiency is ensured by the numerous mirror-polished channels positioned across the internal surface of the tank. Cleaning operations are simplified thanks to a quick assembly and disassembly system. Large double door with manual opening/closing and mechanical safety lock.
The pressing membrane is made of food-grade plastic material and can be fully inflated even without product inside the tank. Quick fixing system without perforations on the membrane.
Fully AISI 304 stainless steel frame. Electrical control panel and cabinets made of stainless steel, compliant with current European Directives. Machine equipped with inflation compressor and blower for membrane retraction.
Side safety barriers and emergency mushroom button ensure maximum operator safety. The machine complies with current European safety standards.

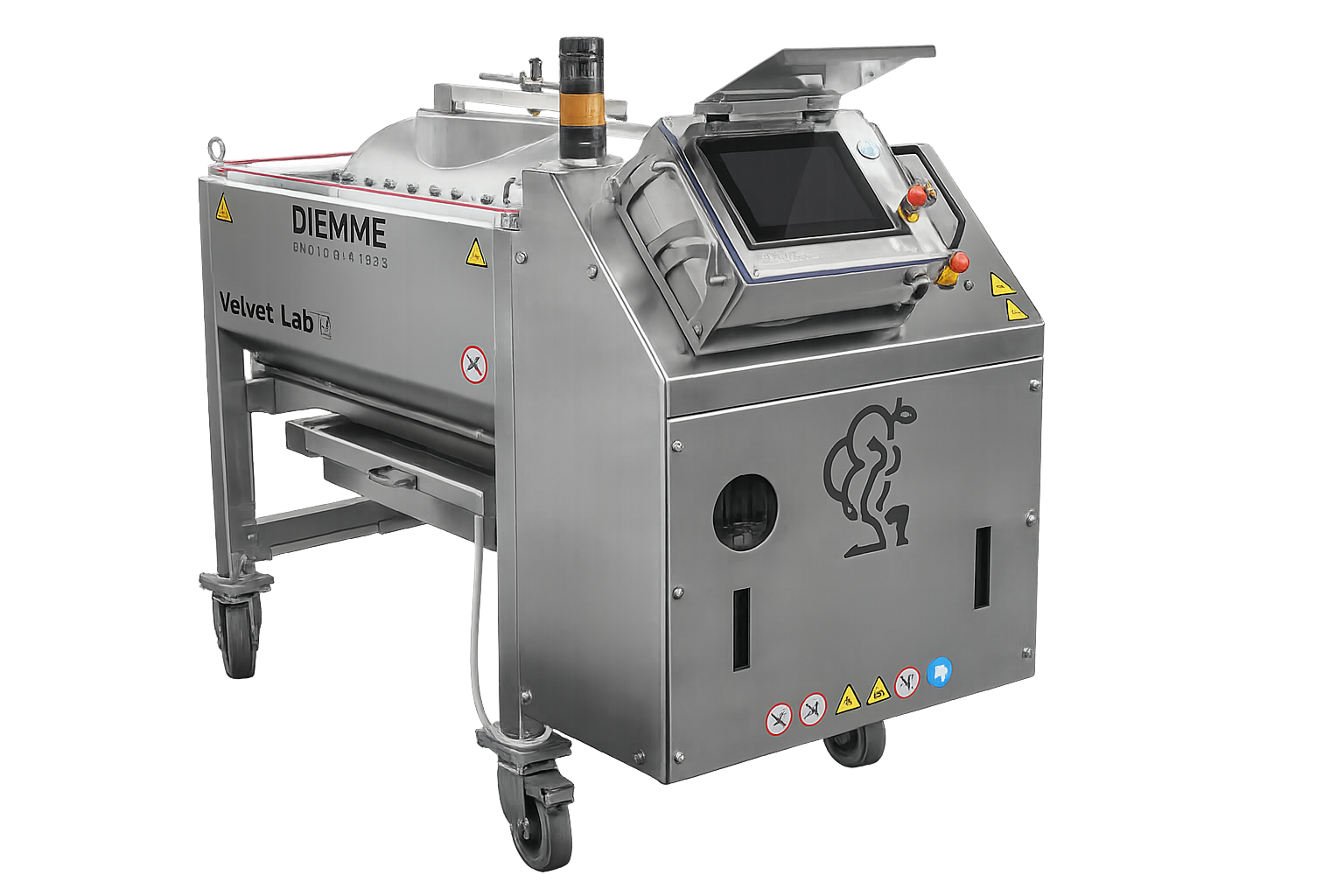

The E-panel Touch-Screen operator interface features simple and intuitive graphics for easy access to programming pages. It allows complete management and programming of all machine working cycles, monitoring of ongoing operations, and control of the press operating status. The PLC stores 30 pressing programs, including the “Rocking” function for tank oscillation and the intelligent MI.I.P. program designed to optimize cycle times.
Manufacturer: DIEMME ENOLOGIA S.p.A. – Italy
